Pre-Engineered Translucent Roofing Systems

Pre-Engineered Skyroofs®

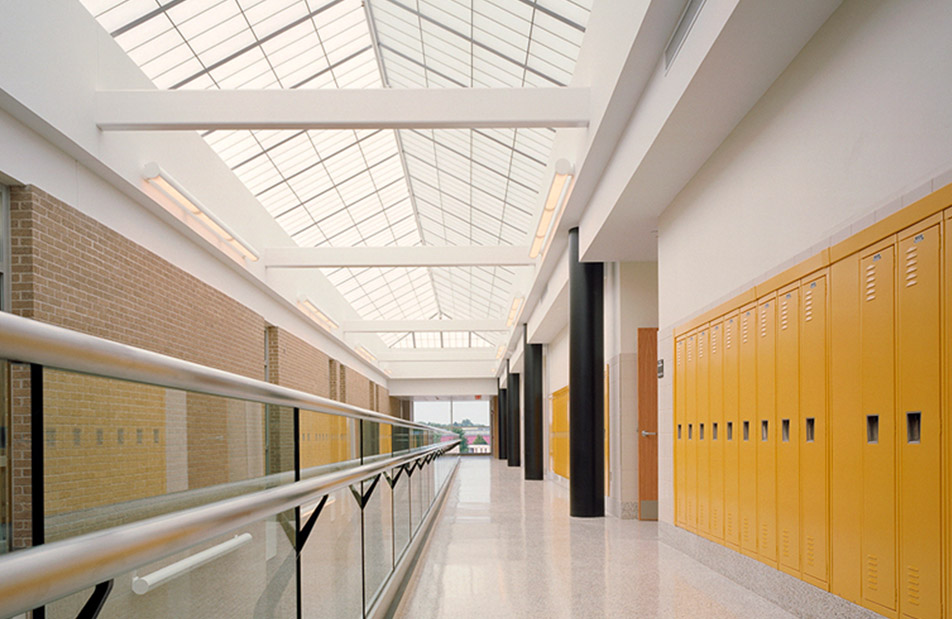

Kalwall offers a wide range of pre-engineered skyroofs, including shed roofs, ridge roofs, pyramids, barrel vaults and low-profile vaults. All of our pre-engineered skyroofs offer attractive, affordable toplighting solutions for any daylit space.

Our standard translucent panels are lightweight, weighing in at 2 lbs/sq. foot | 9.8 kg/sq. meter on average. This significantly minimizes support framing requirements, especially compared to glass roof systems. Only thrust-bearing curbs designed to accommodate local live snow and wind load designs are required. Large, monumental daylighting spans up to 24′ are possible, depending on load and slope, without additional support framing.

Our rugged roof systems are all man-safe and OSHA fall-through compliant, meaning no safety cages required—another cost savings. Pair that with the low-maintenance, energy-efficient nature of all our daylighting systems and you have the perfect solution for any roof.

Design Options

Shapes + Curves

Kalwall’s 90° and 180° Kalcurve® skyroofs offer an elegant and efficient design solution where a curved aesthetic is required.

Kalwall facade application at Middle West Spirits showcased in office building with tables, chairs and industrial equipment

Grids

Most roof applications utilize our popular shoji grid, but custom designs can be explored.

Upward angle of Dropzone project with Kalwall facade featuring pink backlighting against a dark blue sky.

Face Sheets

Interior and exterior face sheets can be customized. Standard crystal and white are most popular for skyroofs, but exterior colored tint options and interior textures are available.

Crucible Theater building exterior with glass walls and sign with large lettering on Kalwall facade featuring backlighting

Colored Inserts

Create a pattern or design on your roof with colored inserts. Standard red, green, yellow and blue or completely customized colors are available.

Load More 01/04
